PE-MF100

Epoxy waterproofing membrane

PE-MF-100 is a 100% solids, two component, epoxy urethane hybrid, coating membrane. It is designed to be used as seamless waterproof membrane to protect concrete from water damage. It also offers excellent chemical resistance and protects against common parking deck chemicals. It is skid resistant and offers excellent durability and abrasion resistance. It exhibits very good mechanical properties, such as high elongation and tear resistance.

Advantages

  • Dense surface resistant to bacteria and moisture and easy to clean
  • May apply several layers on itself
  • Contains 100% solids and is VOC compliant, allowing for interior application without harmful odors
  • Excellent adhesive properties, allowing application on other firm and hard coating, as well as a good bond to the substrate
  • Superior flexibility
  • It is non-flammable and solvent free

Where to use

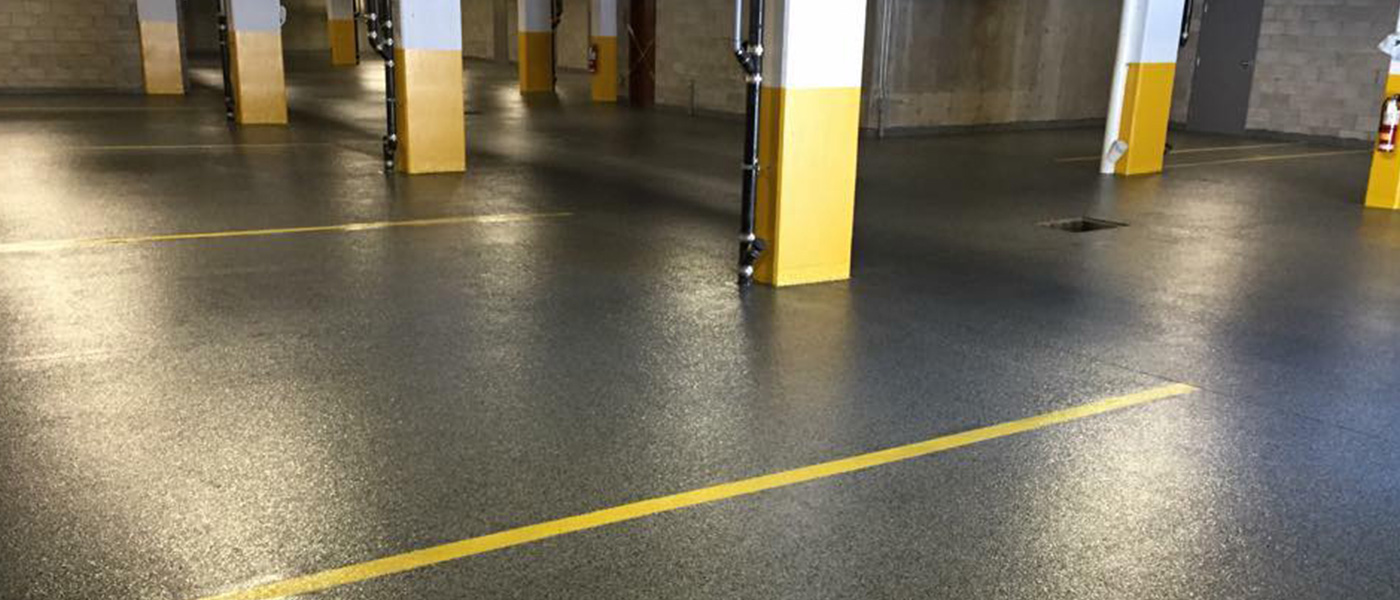

  • Parking garages
  • Mechanical rooms
  • Stadiums
  • Balconies
  • Plaza decks

Technical Data

IMPORTANT NOTE: PROPERTIES @ 73°F (23 °C) and 50% R.H. Times are approximate and will be affected by changing ambient conditions, especially changes in temperature and relative humidity. The indicated mileage is calculated for flat surfaces. A porous or imperfect surface will require more material in order to cover the same mileage. *

PACKAGING3.96 US GAL KIT (15 L)
COLORPART A: UPON REQUEST
PART B: AMBER
MIX: UPON REQUEST
RECOMMENDED THICKNESS20 MILS (80 ft²/gal)
SHELF LIFE12 months in original unopened factory sealed containers. Keep away from extreme cold, heat, or moisture. Keep out of direct sunlight and away from fire hazards.
MIX RATIO, BY VOLUMEA:B = 2:1
MIX RATIO, BY WEIGHTA:B = 100:44
POT LIFE 16 OZ (454 G)30-45 minutes @ 77°F (25°C)
SOLIDS CONTENT, BY VOLUME100%
SOLIDS CONTENT, BY WEIGHT100%
DENSITY (KG/L)Part A: 1.10-1.15
Part B: 0.9-1.0
Mix: -
THINNER RECOMMENDEDXylene
WAITING TIME/ OVERCOATABILITY8-12 hours
PEDESTRIAN TRAFFIC12-24 hours
NORMAL TRAFFIC> 4 days
HEAVY EQUIPMENT TRAFFIC> 10 days
BOND RESISTANCE (PSI), ASTM D45415 days dry cure, 782 psi
WATER ABSORPTION (%), ASTM D5700.6
HARDNESS (SHORE D), ASTM D224085-95
ABRASIVE RESISTANCE, ASTM D4060 ( CS17 / 1000 CYCLES / 1000 G)0.10 g
VOC (G/L)Part A: 26.4 Part B: 146.8 Mix: -
VISCOSITY @ 77°F (25°C)Part A: 4000 – 6000 Part B: 300 – 500 Mix: 2000 - 3000
TRACTION STRENGHT (PSI), ASTM D638569
ELONGATION %, ASTM D638300 – 400 %
